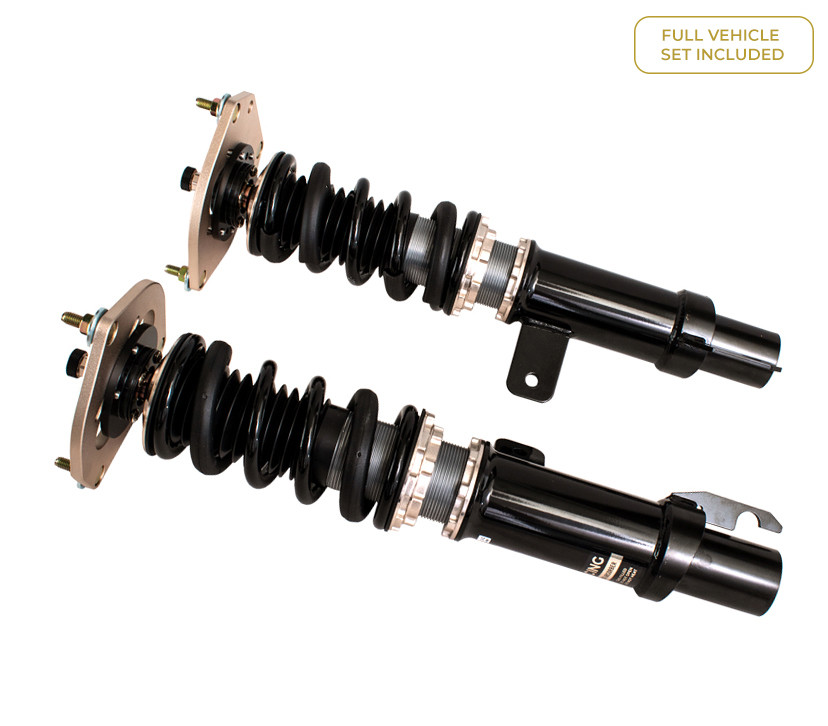

Description
SKODA KAROQ (TORSION BEAM) FWD NU7 (17+) BC Racing DS Series Coilovers | 6/4kg.mm
The BC Racing DS Series Coilovers are engineered specifically for the SKODA KAROQ (TORSION BEAM) FWD NU7 (17+), delivering precision handling and adjustable suspension control for drivers seeking enhanced performance. These coilovers feature a 6/4kg.mm spring rate configuration, providing the ideal balance between responsive cornering and ride comfort for your Karoq. Whether you're refining daily driving dynamics or pursuing track-focused improvements, the BC Racing DS Series offers the tuneability and quality construction that UK enthusiasts demand.
BC Racing DS Series Coilovers
The BC Racing DS Coilover system is built with digressive valving, offering the same great benefits of the BR Series and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design produces a non-linear damping curve — allowing higher low-speed damping to control body roll through cornering, acceleration and braking, while providing reduced high-speed damping to allow the wheel to travel when running kerbs, preventing the impact from transmitting fully into the shell and retaining car balance.
Key Features
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Monotube damper design
- Pillowball top mounts (depending on model)
- Bearing mounted upper spring platform
- Camber adjustable top mounts (depending on model)
- Tapered bottom mount locking collar to prevent collar working loose
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect damper seals
- 1 year manufacturer warranty
Digressive Piston Valving
Unlike a conventional linear piston, the DS digressive design increases damping force at low piston velocities — the range associated with body roll, pitch and dive during driven inputs — while reducing damping force at high piston velocities, such as when a wheel travels over a kerb. This keeps the car stable during cornering loads while allowing impacts to be absorbed without upsetting the chassis balance.
Kit Specifications
- Fitment: SKODA KAROQ (TORSION BEAM) FWD NU7 (17+)
- Spring Rate: 6/4kg.mm
- 30-Way Combined Damping Adjustment
- Monotube Damper Design
- Full Ride Height Adjustment (via Bottom Mount)
- Adjustable Spring Platforms for Corner Weighting
- Tapered Bottom Mount Locking Collar
- Custom Spring Rates Available
- All Spare Parts Available
- 1 Year Manufacturer Warranty
Fitment Data
| Make | Skoda |
| Model | Karoq |
| Chassis | (TORSION BEAM) FWD NU7 (17+) |
| Series | DS |
| Spring Rate | 6/4kg.mm |
| Part Number | YD-20-DS-DA |
