Description

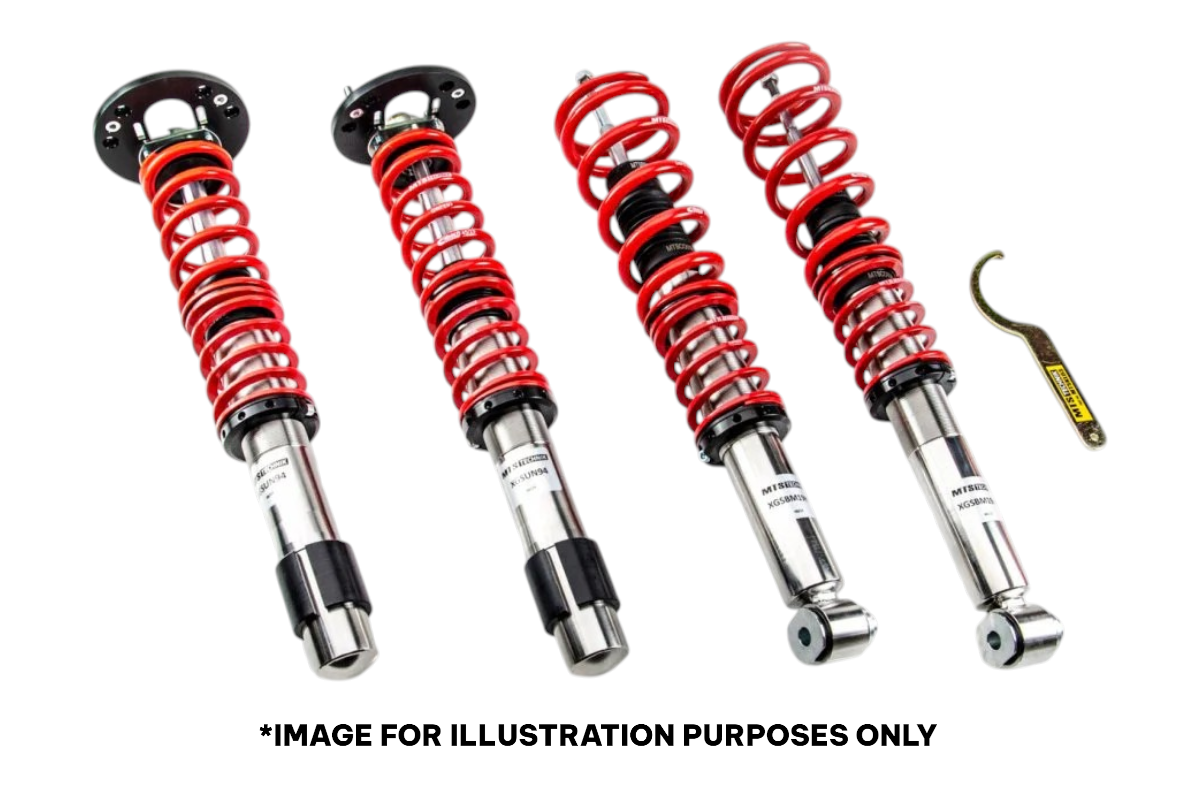

MTS Technik Coilovers (Street, Inox) for Seat LEON ST (5F)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
Configuration & specifications
| XMTSGWVW50 | |
|---|---|
| Configuration | |
| Top mounts | Stock (not included) |
| Variant note | torsion beam |
| Lowering (mm) | |
| Front | 35 - 70 mm |
| Rear | 35 - 70 mm |
| Axle load (kg) | |
| Front | -1080 kg |
| Rear | -1110 kg |
| Spring rates (N/mm) | |
| Front main spring | 28 - 40 N/mm |
| Rear main spring | 80 N/mm |
| Rear helper spring | 20 N/mm |
| Approval | |
| TÜV | yes |
| Documents | |
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing).• Not for 4x4.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
This Kit will fit the following Vehicles:
Seat LEON (5F) - 2.0 Cupra / 2.0 Cupra R / 1.0 TSI / 1.0 TSi / 1.2 TSI / 1.4 TGI / 1.4 TSI / 1.5 TGi / 1.5 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI / 2.0 TSI
Seat LEON SC (5F) - 2.0 Cupra / 1.0 TSI / 1.2 TSI / 1.4 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI
Skoda OCTAVIA III (5E) - 2.0 TDI RS / 2.0 TSI RS / 1.6 / 1.0 TSI / 1.2 TSI / 1.4 TSI / 1.5 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI / 2.0 TSI
Skoda OCTAVIA III Combi (5E) - 2.0 TDI RS / 2.0 TSI RS / 1.6 / 1.0 TSI / 1.2 TSI / 1.4 TSI / 1.5 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI / 2.0 TSI
Skoda OCTAVIA IV (NX) - 1.4 TSI RS iV / 2.0 TDI RS / 2.0 TSI RS / 1.0 TSI / 1.0 TSI e-TEC / 1.4 TSI / 1.5 TSI / 1.5 TSI e-TEC / 1.5 TSI G-TEC / 1.6 SRE / 2.0 TDI
Skoda OCTAVIA IV Combi (NX) - 1.4 TSI RS iV / 2.0 TDI RS / 2.0 TSI RS / 1.0 TSI / 1.0 TSI e-TEC / 1.5 TSI / 1.5 TSI e-TEC / 1.5 TSI G-TEC / 1.6 SRE / 2.0 TDI
Volkswagen GOLF VII (5G1) - 2.0 GTD / 2.0 GTI / 2.0 GTI Clubsport / 1.6 / 1.0 TSI / 1.2 TSI / 1.4 TGI CNG / 1.4 TSI / 1.4 TSI MultiFuel / 1.5 TGI / 1.5 TSI / 1.6 TDI / 2.0 TDI
Volkswagen GOLF VII Variant (BA5) - 2.0 GTD / 1.6 / 1.0 TSI / 1.2 TSI / 1.4 TGI CNG / 1.4 TSI / 1.4 TSI MultiFuel / 1.5 TGI / 1.5 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI
Volkswagen GOLF VIII (CD1) - 1.4 GTE Plug-in Hybrid / 2.0 GTI / 2.0 GTI Clubsport / 2.0 TDI GTD / 1.0 eTSI / 1.0 TSI / 1.4 TSI eHybrid / 1.5 eTSI / 1.5 TGI / 1.5 TSI / 2.0 TDI / 2.0 TSI
Volkswagen GOLF VIII Variant (CG5) - 2.0 GTI / 1.0 eTSI / 1.0 TSI / 1.5 eTSI / 1.5 TGI / 1.5 TSI / 2.0 TDI
Audi A3 (8V) - 1.0 TFSI / 1.2 TFSI / 1.4 TFSI / 1.4 TSI / 1.5 TFSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI / 2.0 TFSI
Audi A3 Convertible (8V) - 1.4 TFSI / 1.4 TSI / 1.5 TFSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI / 2.0 TFSI / 35 TFSI
Audi A3 Limousine (8V) - 1.0 TFSI / 1.2 TFSI / 1.4 TFSI / 1.4 TSI / 1.5 TFSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI / 2.0 TFSI / 30 TDI / 30 TFSI / 35 TDI / 35 TFSI
Audi A3 Limousine (8Y) - 30 TDI / 30 TFSI / 35 TDI / 35 TFSI
Audi A3 Sportback (8V) - 1.0 TFSI / 1.2 TFSI / 1.4 TFSI / 1.4 TFSI g-tron / 1.4 TSI / 1.5 TFSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI / 2.0 TFSI / 30 g-tron / 30 TDI / 30 TFSI / 35 TDI / 35 TFSI / 40 TFSI
Audi A3 Sportback (8Y) - 30 TDI / 30 TFSI / 35 TDI / 35 TFSI / 40 TFSIe
Seat LEON (KL) - 1.0 TSI / 1.5 eTSI / 1.5 TGI CNG / 1.5 TSI / 2.0 TDI / 2.0 TFSI
Seat LEON Sportstourer (KL) - 1.0 TSI / 1.5 eTSI / 1.5 TSI / 2.0 TDI
Seat LEON ST (5F) - 1.0 TSI / 1.0 TSi / 1.2 TSI / 1.4 TGI / 1.4 TSI / 1.5 TGi / 1.5 TSI / 1.6 TDI / 1.8 TSI / 2.0 TDI / 2.0 TSI / 2.0 Cupra
MTS TECHNIK PART NUMBER:
XMTSGWVW50
