Description

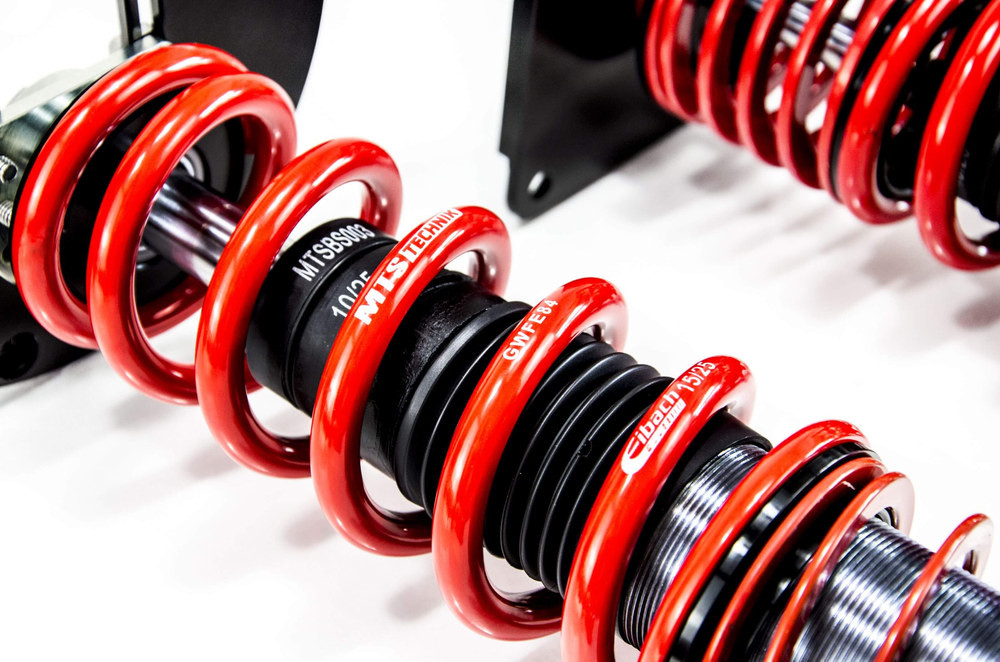

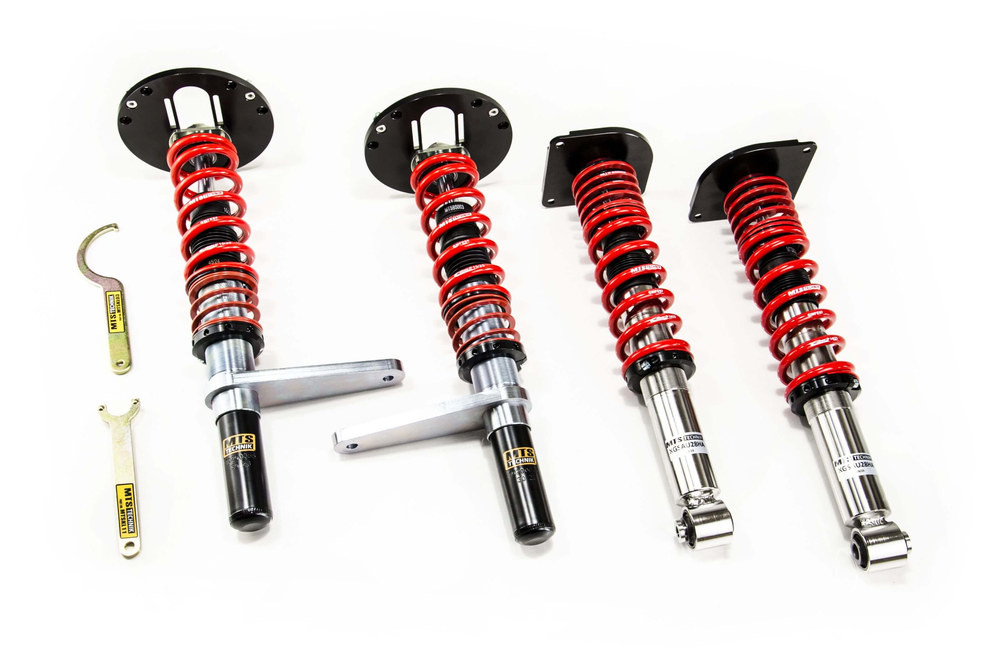

MTS Technik Coilovers (Street, Inox) for Audi 100 C3 Avant (44) / 100 C3 Saloon (44)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
Stainless steel threaded shock absorbers.
Configuration & specifications
| XMTSGWAU64 | |
|---|---|
| Configuration | |

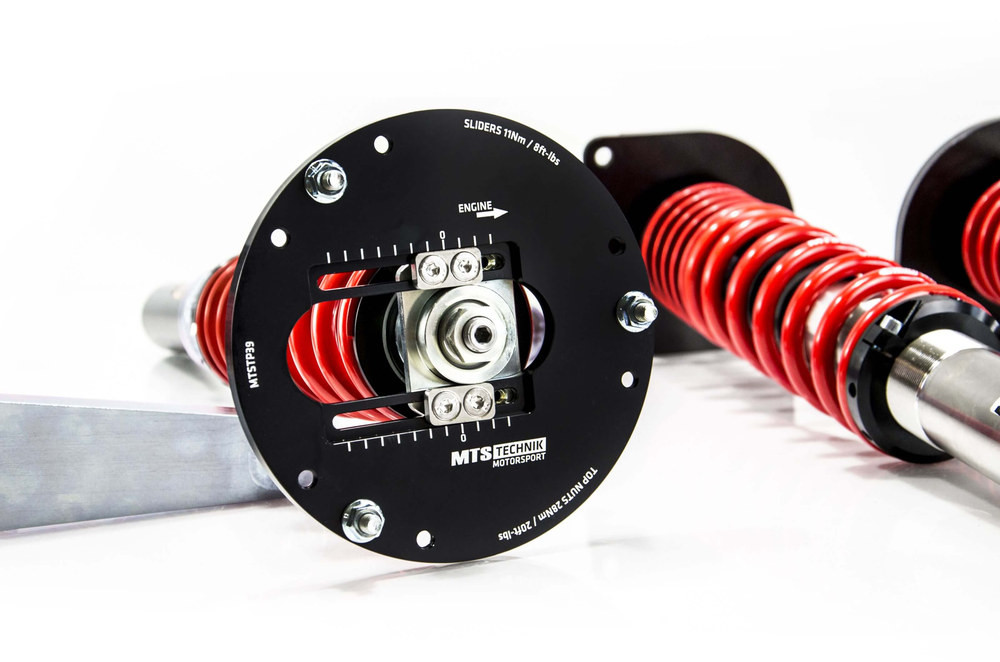

| Top mounts | Camber adjustable (front + rear) |
| Lowering (mm) | |
| Front | 15 - 100 mm |
| Rear | 15 - 85 mm |
| Axle load (kg) | |
| Front | -1240 kg |
| Rear | -1200 kg |
| Spring rates (N/mm) | |
| Front main spring | 70 N/mm |
| Front helper spring | 5.66 N/mm |
| Rear main spring | 60 N/mm |
| Rear helper spring | 20 N/mm |
| Approval | |
| TÜV | no |
| Documents | |
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• The kit includes 2 upper front camber plates.
• The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.
• The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.
This Kit will fit the following Vehicles:
Audi 100 C3 Avant (44) - 1.8 / 2.0 / 2.0 E Cat / 2.1 / 2.2 / 2.3 / 2.0 D / 2.0 TD / 2.5 TDI / 2.4 D / 1.9 / 2.0 E / 2.2 Cat
Audi 100 C3 Saloon (44) - 1.8 / 1.8 Cat / 1.9 / 2.0 / 2.0 Cat / 2.1 / 2.2 / 2.3 E / 2.0 D / 2.0 D Turbo / 2.5 TDI / 2.4 D / 2.2 Cat
Audi 100 C4 Avant (4A) - 2.5 TDI / 2.0 E / 2.6 / 2.3 E / 2.8 E / 2.0 E 16V / 2.4 D
Audi 100 C4 Saloon (4A) - 2.0 E 16V / 2.4 D / 2.5 TDI / 2.0 / 2.0 E / 2.3 E / 2.6 / 2.8 E
Audi 200 C3 Avant (44) - 2.2 Turbo
Audi 200 C3 Saloon (44) - 2.1 5E / 2.1 Turbo / 2.2 / 2.2 Turbo
Audi A6 C4 (4A) - 2.0 / 2.8 / 1.9 TDI / 2.5 TDI / 2.0 16V / 2.6 / 1.8 / 2.3
Audi A6 C4 Avant (4A) - 2.0 / 2.8 / 1.9 TDI / 2.5 TDI / 2.0 16V / 2.6 / 1.8 / 2.3
MTS TECHNIK PART NUMBER:
XMTSGWAU64 — Camber F+R
