Description

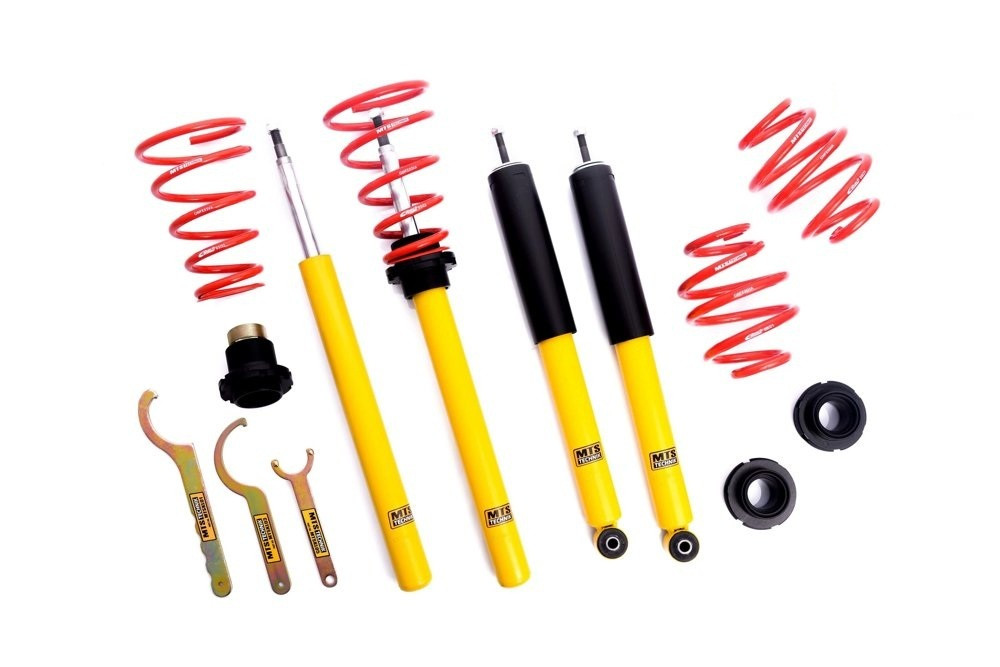

MTS Technik Coilovers (Street, Gold) for BMW 3 (E30) / 3 Touring (E30)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM102, MTSGWBM105 — Camber adjustable (front + rear):
A complete set ready for assembly, also including sway bar links, adapted for lowering.
MTSGWBM102, MTSGWBM105, MTSGWBM11, MTSGWBM15:
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
MTSGWBM11, MTSGWBM15 — Camber adjustable (front):
Additional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.
Configuration & specifications
| MTSGWBM10 | MTSGWBM102 | MTSGWBM105 | MTSGWBM11 | MTSGWBM15 | |
|---|---|---|---|---|---|
| Configuration | |||||
| Top mounts | Stock (not included) | Camber adjustable (front + rear) | Camber adjustable (front + rear) | Camber adjustable (front) | Camber adjustable (front) |
| Front strut | 51 mm | 51 mm | 45 mm | 51 mm | 45 mm |
| Lowering (mm) | |||||
| Front | 30 - 65 mm | 25 - 90 mm | 25 - 90 mm | 25 - 90 mm | 25 - 90 mm |
| Rear | 25 - 60 mm | 25 - 60 mm | 25 - 60 mm | 25 - 60 mm | 25 - 60 mm |
| Axle load (kg) | |||||
| Front | -865 kg | -865 kg | -865 kg | -865 kg | -865 kg |
| Rear | -1030 kg | -1030 kg | -1030 kg | -1030 kg | -1030 kg |
| Spring rates (N/mm) | |||||
| Rear main spring | 46 - 90.1 N/mm | 46 - 90.1 N/mm | 46 - 90.1 N/mm | 46 - 90.1 N/mm | 46 - 90.1 N/mm |
| Front main spring | 29 N/mm | 60 N/mm | 60 N/mm | 60 N/mm | 60 N/mm |
| Front helper spring | — | 20 N/mm | 20 N/mm | 20 N/mm | 20 N/mm |
| Approval | |||||
| TÜV | yes | no | no | no | no |
| Documents | |||||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Not for 4x4.• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Including M-Technik.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Notes by configuration
MTSGWBM10 — Stock (not included):
- Front and rear height adjustable axle (front and rear springs with height adjustment element + shock absorbers).
MTSGWBM102, MTSGWBM105, MTSGWBM11, MTSGWBM15:
- Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
- Independent height adjustment at the lower brackets on the front dampers.
- The kit includes 2 upper front camber plates.
- The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.
- Rear thread adjustment block is mounted on the top.
This Kit will fit the following Vehicles:
BMW 3 (E30) - 315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 i
BMW 3 Convertible (E30) - 318 i / 320 i / 325 i
BMW 3 Touring (E30) - 316 i / 318 i / 320 i / 324 td / 325 i
MTS TECHNIK PART NUMBER:
MTSGWBM10
MTSGWBM102 — Camber F+R
MTSGWBM105 — Camber F+R
MTSGWBM11 — Camber Front
MTSGWBM15 — Camber Front
