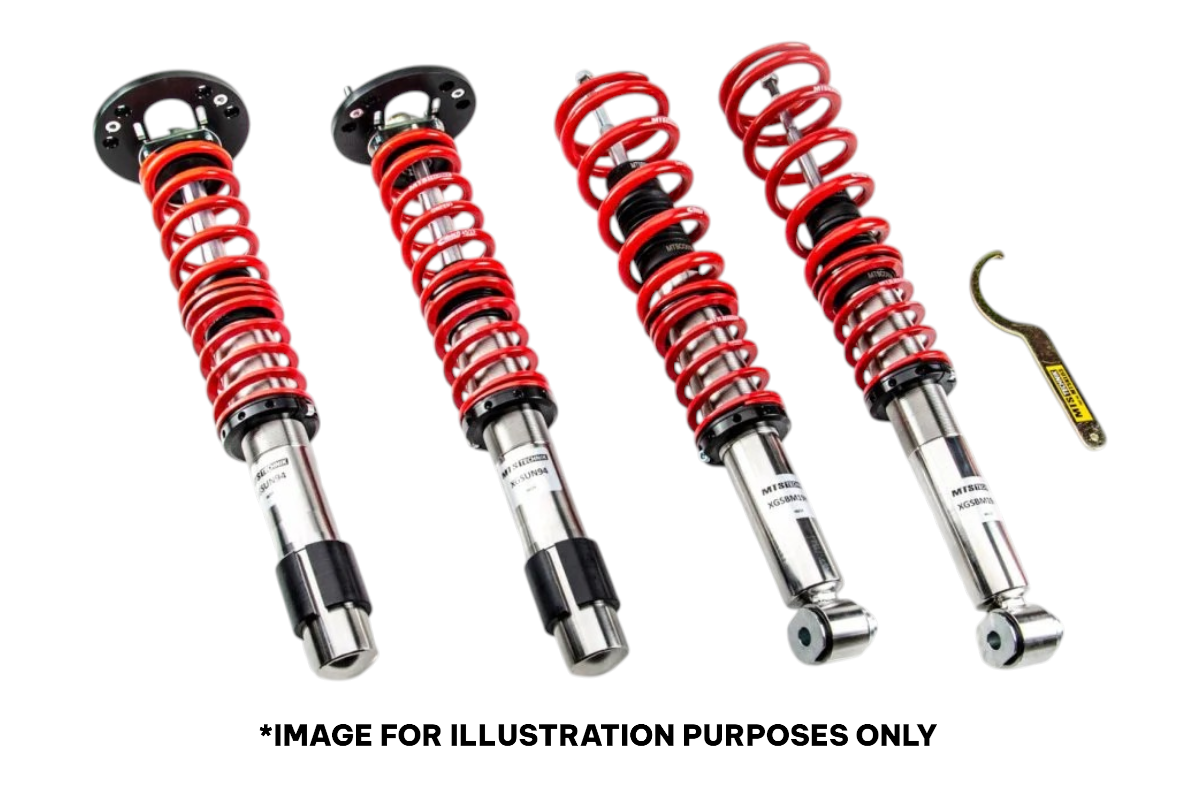

MTS Technik Coilovers (Comfort, Inox) for Volkswagen POLO V (6R1/6C1)
RELIABLE AND AFFORDABLE COMFORT SUSPENSION FROM MTS TECHNIK Comfort: The Comfort series suspension is the most balanced setup with softer spring rates — ideal for daily driving while still offering noticeable lowering.Key Features
Features by configuration
XMTSGWVW97-C — Camber adjustable (front):
Configuration & specifications
| XMTSGWVW46-C | XMTSGWVW97-C | |
|---|---|---|
| Configuration | ||
| Top mounts | Stock (not included) | Camber adjustable (front) |
| Top mount type | OEM mount 1J0412331 | — |
| Lowering (mm) | ||
| Front | 15 - 60 mm | 15 - 60 mm |
| Rear | 15 - 60 mm | 15 - 60 mm |
| Axle load (kg) | ||
| Front | -960 kg | -960 kg |
| Rear | -840 kg | -840 kg |
| Spring rates (N/mm) | ||
| Front main spring | 50 N/mm | 50 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 17 - 27 - 37.5 N/mm | 17 - 27 - 37.5 N/mm |
| Approval | ||
| TÜV | yes | no |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Rear thread adjustment block is mounted on the bottom.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Notes by configuration
XMTSGWVW46-C — Stock (not included):
- Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case.
This Kit will fit the following Vehicles:
Audi A1 (8X) - 1.0 TFSI / 1.2 TFSI / 1.4 TDI / 1.4 TFSI / 1.4 TSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI
Audi A1 Sportback (8X) - 1.0 TFSI / 1.2 TFSI / 1.4 TDI / 1.4 TFSI / 1.4 TSI / 1.6 TDI / 1.8 TFSI / 2.0 TDI
Seat IBIZA IV (6J/6P) - 1.2 / 1.4 / 1.6 / 1.0 / 1.0 TSI / 1.2 LPG / 1.2 TDI / 1.2 TSI / 1.4 LPG / 1.4 TDI / 1.4 TSI / 1.6 LPG / 1.6 TDI / 1.9 TDI / 2.0 TDI
Seat IBIZA IV SC (6J/6P) - 1.2 / 1.4 / 1.6 / 1.0 / 1.0 TSI / 1.2 TDI / 1.2 TSI / 1.4 TDI / 1.4 TSI / 1.6 LPG / 1.6 TDI
Seat IBIZA IV ST (6J/6P) - 1.2 / 1.4 / 1.6 / 1.0 / 1.0 TSI / 1.2 TDI / 1.2 TSI / 1.4 TDI / 1.4 TSI / 1.6 TDI
Skoda FABIA II (542) - 1.2 / 1.4 / 1.6 / 1.2 12V / 1.2 TDI / 1.2 TSI / 1.4 TDI / 1.4 TSI RS / 1.6 TDI / 1.9 TDI
Skoda FABIA II Combi (545) - 1.2 / 1.4 / 1.6 / 1.2 12V / 1.2 TDI / 1.2 TSI / 1.4 TDI / 1.4 TSI RS / 1.6 TDI / 1.9 TDI
Skoda FABIA III (NJ) - 1.6 / 1.0 / 1.0 TSI / 1.2 TSI / 1.4 TDI / 1.4 TSI R5
Skoda FABIA III Estate (NJ) - 1.6 / 1.0 / 1.0 TSI / 1.2 TSI / 1.4 TDI
Volkswagen POLO V (6R1/6C1) - 1.2 / 1.6 / 1.0 / 1.0 TSI / 1.2 TDI / 1.2 TSI / 1.2 TSI 16V / 1.4 (6R1) / 1.4 BiFuel / 1.4 GTI / 1.4 TDI / 1.4 TSI / 1.6 BiFuel / 1.6 TDI / 1.8 GTI / 1.8 GTI 230 / 2.0 R WRC
MTS TECHNIK PART NUMBER:
XMTSGWVW46-C
XMTSGWVW97-C — Camber Front
