Thermostatic Front Mounted Engine Oil Cooler Kit for VW Transporter T5.1 / T6 2.0 Bi-Turbo TDI CFCA

Thermostatic Front Mounted Engine Oil Cooler Kit for VW Transporter T5.1 / T6 2.0 Bi-Turbo TDI CFCA

Darkside Thermostatic Front Mounted 13 Row Oil Cooler Kit with AN-8 Fittings and Hose for Volkswagen Transporter T5.1 / T6 2.0 Bi-Turbo TDI CFCA Diesel Engines

Oil Coolers are an important addition to high performance engines. Engine Oil can easily overheat causing it to becomes thinner and offer less protection to vital engine parts, resulting in premature engine wear. This is especially a concern on the VW Transporters which are known for quite high oil temperatures.

This kit can be universally mounted where suitable using the brackets supplied, but most commonly fitted at the front of the vehicle above the intercooler.

We supply a thermostatic sandwich plate which fits between the EGR Cooler and Oil Filter, this thermostat opens at 80°, when below this temperature the oil stays away from the coolant circuit allowing the engine to get up to temperature faster and maintain a constant temperature.

Reduces Oil Temperatures

Oil Cooler Sizes:

Max Pressure 10 BAR (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 100mm x D - 50mm

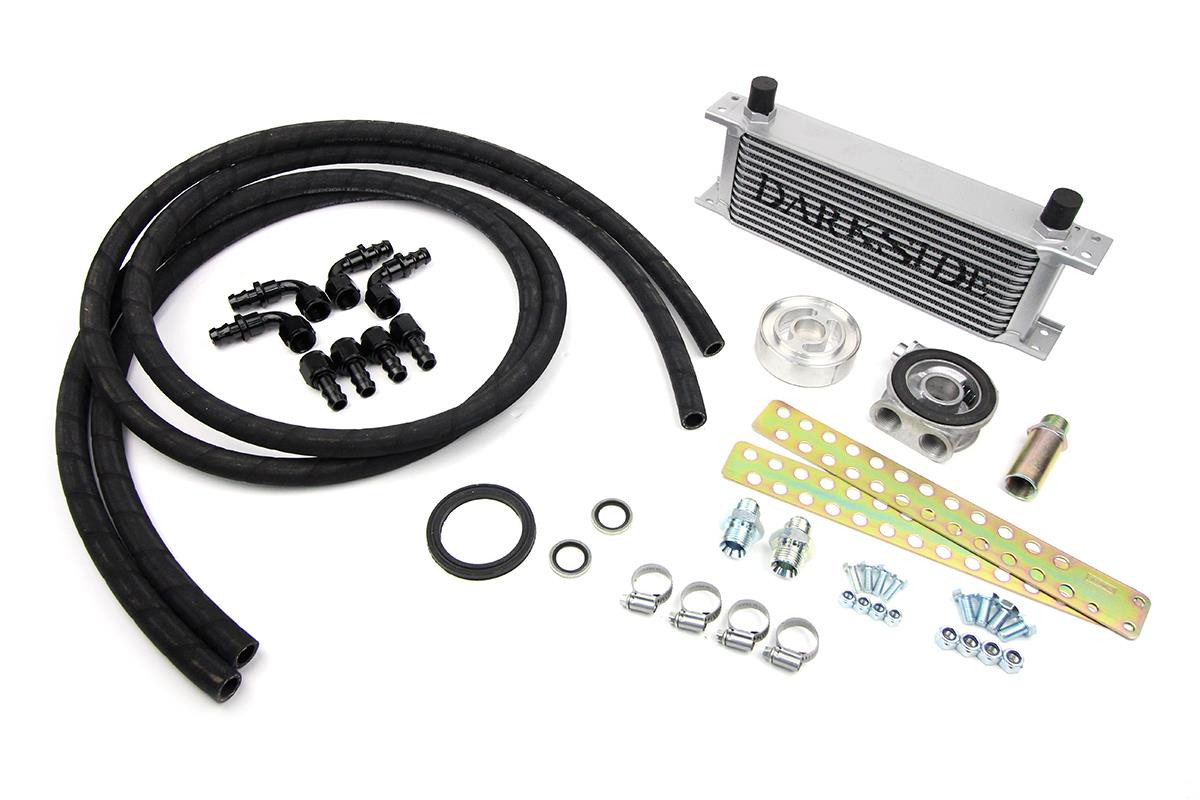

This Kit Consists of the Following:

1x Darkside 13 Row Oil Cooler
4x AN-8 Straight Oil Cooler Fittings
4x AN-8 90 Degree Oil Cooler Fittings
4m of AN-8 Oil Cooler Hose
1x Aluminium Sandwich Plate with Seal
1x Thermostatic Sandwich Plate
Universal Oil Cooler Mounting Brackets
Oil Cooler Seals
Fitting Kit

This Kit will fit Vehicles with the following Engine Codes:

VW Campmobile Type 2 / T2 - CFCA (180)

VW Transporter Kombi - CFCA (180)

Suitable for Genuine VAG Part Numbers:

03L115512 - 03L 115 512
03L115512A - 03L115512 A - 03L 115 512 A
03L115512C - 03L115512 C - 03L 115 512 C
03L115512D - 03L115512 D - 03L 115 512 D
