Darkside Audi DL501 0B5 7 Speed S-Tronic Gearbox Oil Cooler Kit

Darkside Audi DL501 0B5 7 Speed S-Tronic Gearbox Oil Cooler Kit

Darkside Performance Gearbox Oil Cooler Kit for Audi DL501 0B5 7 Speed S-Tronic DSG Transmissions.

We have paired this kit with High Pressure Setrab 14 Row Proline Performance Oil Cooler for maximum efficiency.

Oil Coolers are an important addition to high performance applications. S-Tronic Gearbox Oil can easily overheat causing it to becomes thinner and offer less protection to vital gearbox parts, resulting in premature gearbox wear. This can also affect the performance and function of the gearbox.

This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

After testing on our own A5 Project car we soon found that regular universal oil coolers were not up to the job of handling the high pressures produced by the S-Tronic gearbox. With gearbox software we saw oil pressure as high as 20 BAR

Oil Cooler Specifications:

Dimensions: W (Overall) - 328mm / W (Core) - 260mm x H - 148.4mm x D - 50mm

Max Pressure: 25 bar

Burst Pressure: 50 bar

Working Temperature: -40°C to 150°C

Inner Cleanliness: ISO 4406 16/14

General Dimensional Tolerances: ISO 2768-v

Material: Aluminium alloys

Max Connection Tightening Torque: 40 Nm

This Kit Consists of the following:

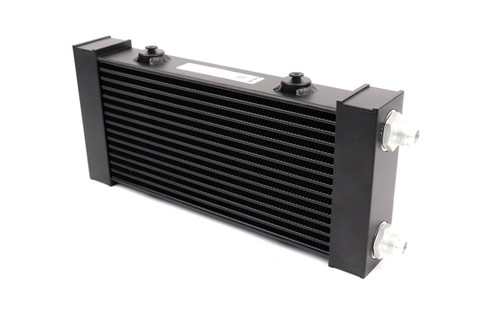

1x Setrab Proline High Pressure Twin Pass 14 Row Cooler
1x Universal Mounting Brackets
2x S-Tronic to AN-8 Adapters
2x Setrab Cooler to AN-8 Adapters
4x Stainless Steel Mikalor Clamps
4m of AN-8 Push Fit Oil Cooler Hose
4x AN-8 Straight Oil Cooler Fittings
4x AN-8 90 Degree Oil Cooler Fittings

This Kit will fit Vehicles with the following Gearbox Codes:

Audi S-Tronic DL501 0B5 DSG Transmissions
