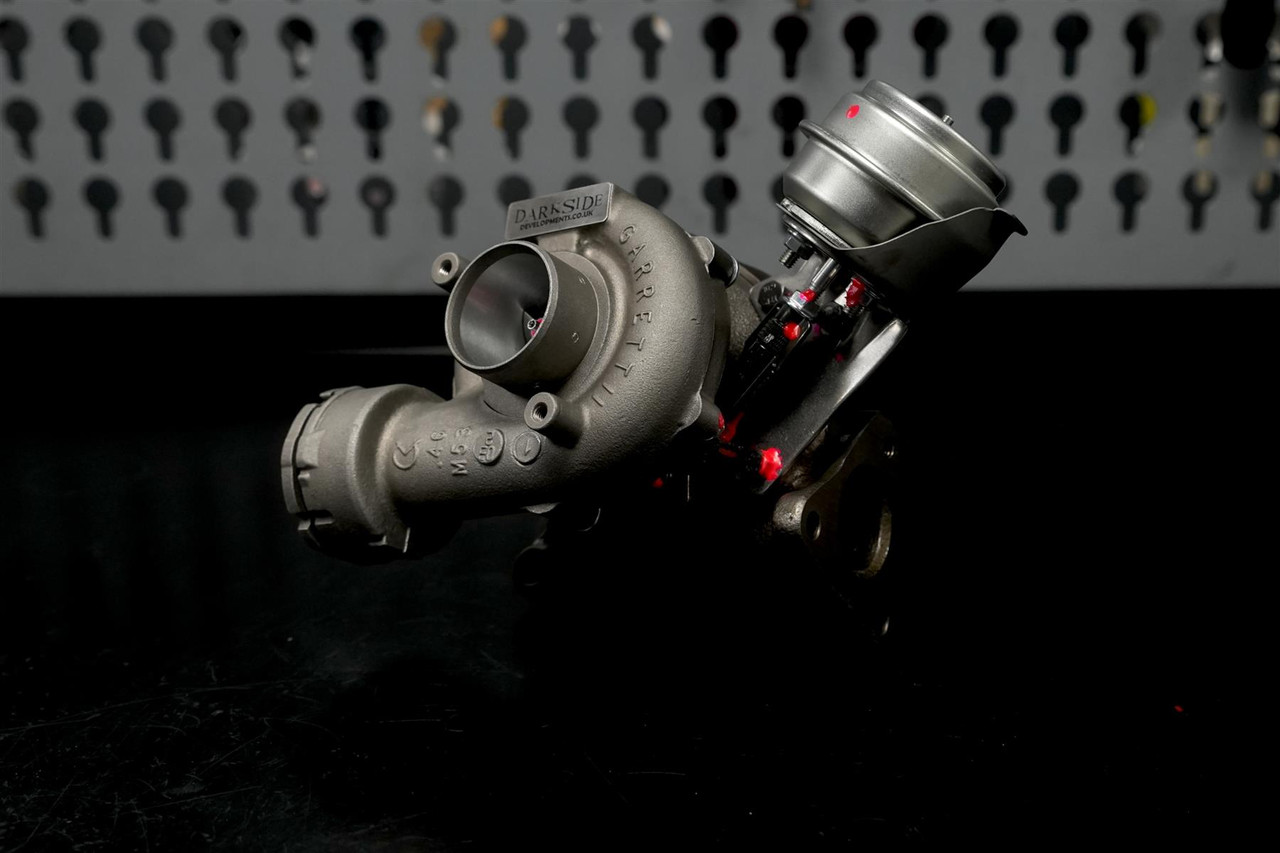

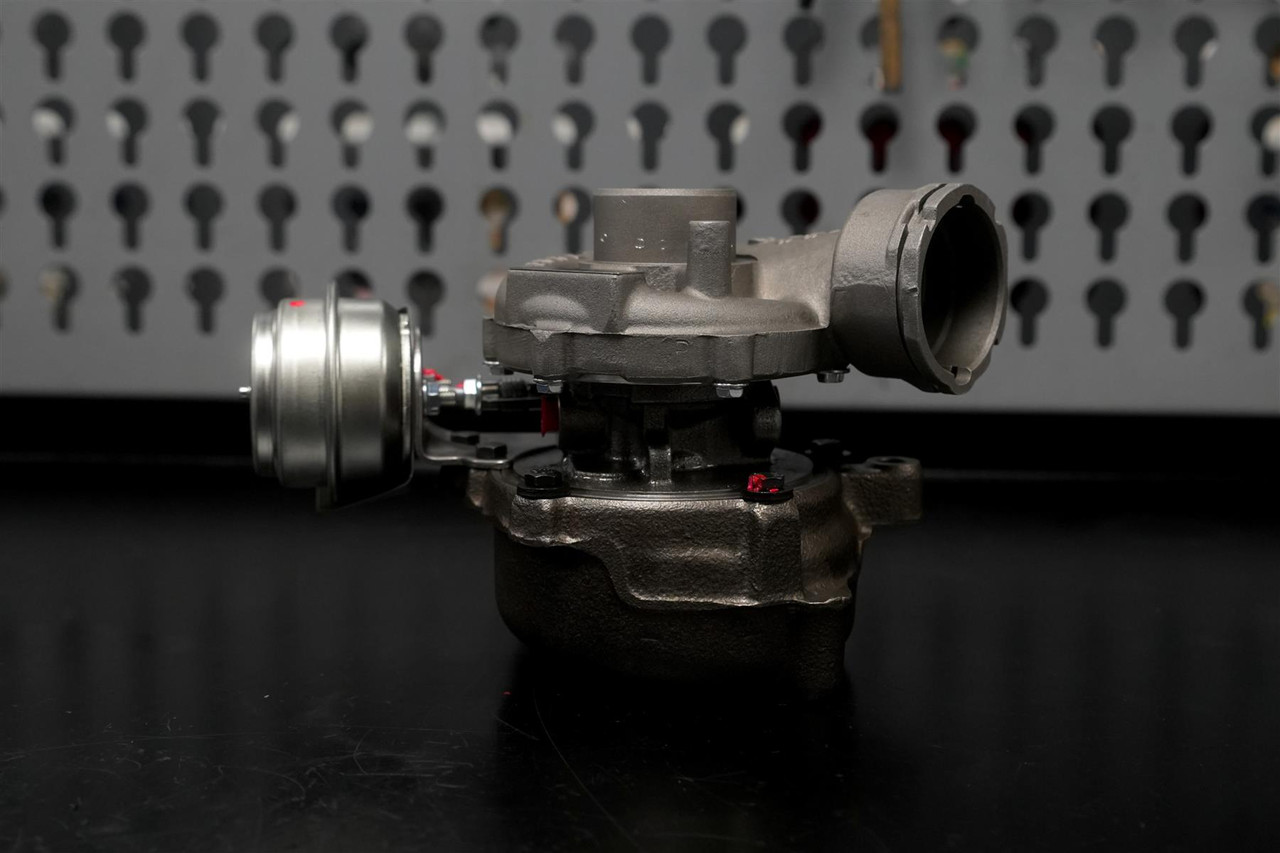

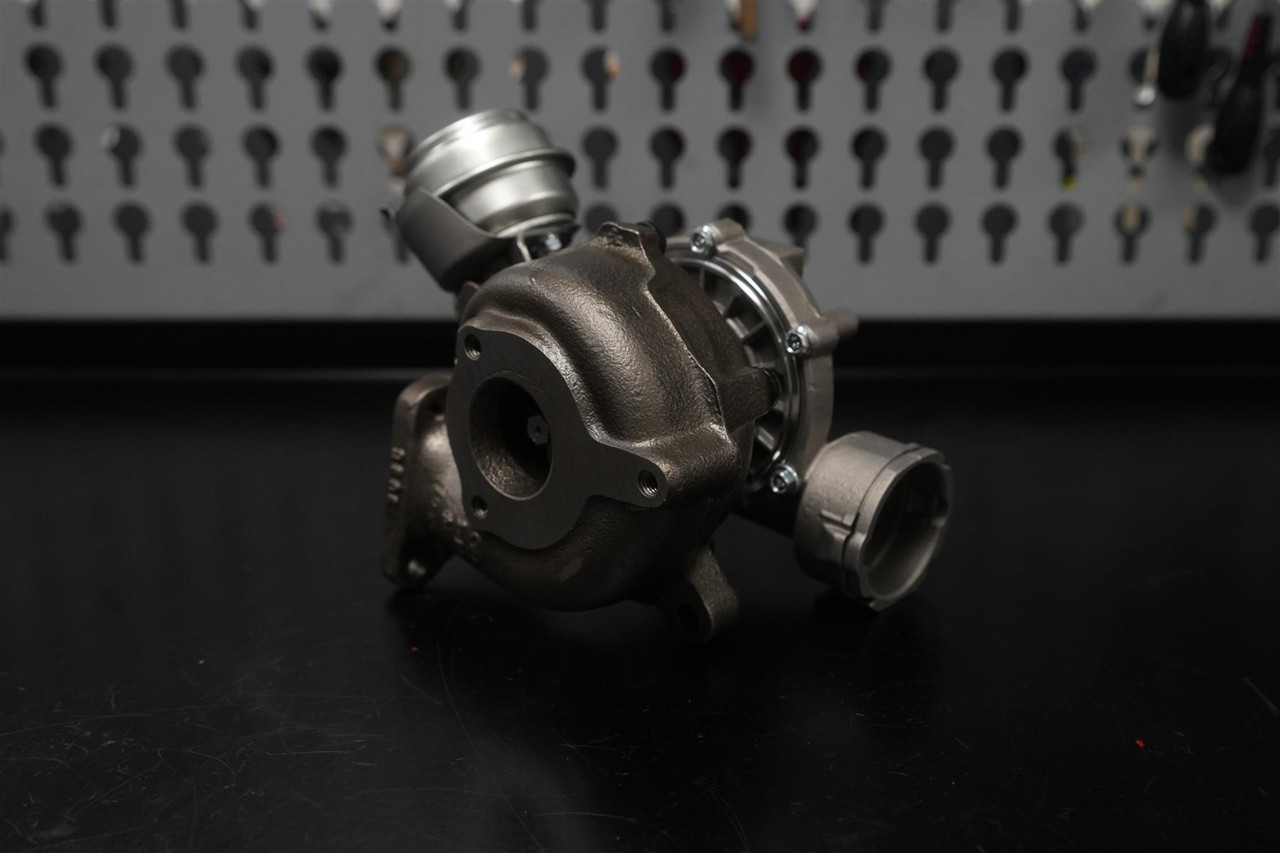

Darkside 52mm GT1749V Hybrid Turbocharger for Longitudinal 1.9 / 2.0 TDI 8v PD Engines

Darkside 52mm GT1749V Hybrid Turbocharger for Longitudinal 1.9 / 2.0 TDI 8v PD Engines

Darkside 52mm GT1749V / BV43 Hybrid Turbocharger Upgrade for Longitudinal Audi A4, A6, Skoda Superb and VW Passat 1.9 / 2.0 TDI 8v PD Diesel Engines

The ultimate bolt-on Peformance Turbocharger upgrade for your Longitudinal 1.9 PD130, PD136 and PD140 8v TDI Engines, commonly found in the Audi A4 B6 & B7, A6 C5, Skoda Superb Mk1 and VW Passat B5.5.

Upgrade for both the Borgwarner BV43 and the Garrett GT1749V and bolts directly to the cast manifold with no additional modifications needed, the perfect mild upgrade.

Made in the UK

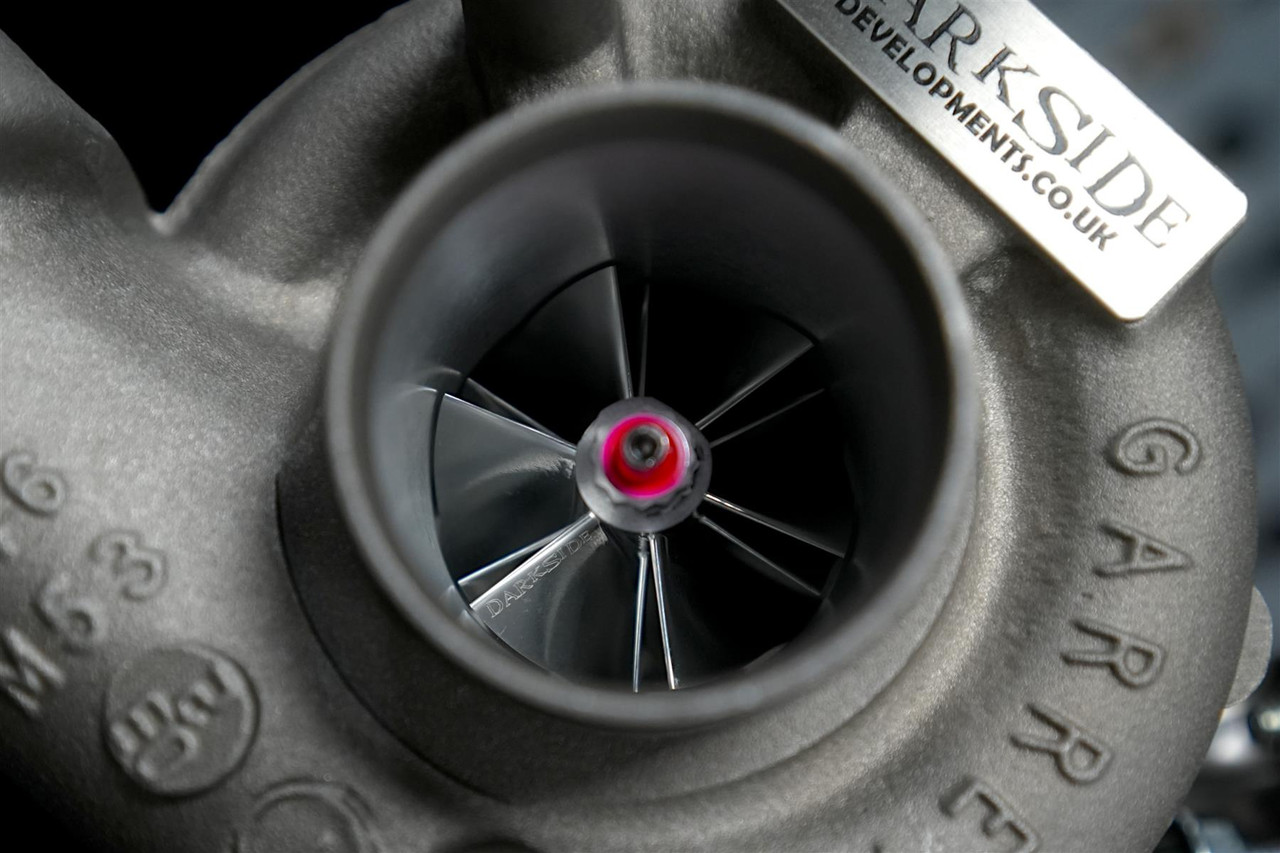

52mm Ultra High Flow Billet Hybrid Wheel

Includes optional Fitting Kit

Capable of up to 220bhp

Direct Bolt on Upgrade

Turbocharger Specifications:

Billet Hybrid Compressor Wheel:

Inducer: 38.58mm
Exducer: 52mm
Trim: 55.04mm
Blade: 6+6

Turbine Wheel (Stock):

Inducer: 43.1mm
Exducer: 36mm
Trim: 69.7mm
Blade: 9+0

You will also require a 4 BAR MAP Sensor when installing this upgrade:

https://darksidedevelopments.com/products/bosch-4-bar-map-manifold-pressure-sensor-0-281-006-059-large-probe.html

To achieve the most power we would also advise our Upgraded Intercooler Kit:

https://darksidedevelopments.com/products/darkside-front-mount-intercooler-kit-fmic-for-vw-passat-audi-a4-1-9-tdi-pd130-avf-awx.html

And our Stainless Steel Decat Downpipe:

https://darksidedevelopments.com/products/darkside-2-5-stainless-de-cat-downpipe-audi-a4-b6-vw-passat-b5-1-9-tdi.html

This item will fit Vehicles with the following Engine Codes:

Audi A4 / Avant - AWX (131) AVF (131) BNA (136) BPW (140) BLB (140)

Audi A4 / S4 / Avant / quattro - AWX (131) AVF (131) BNA (136) BPW (140) BLB (140)

Audi A4 / S4 Cabriolet / quattro - BRC (136) BPW (140)

Audi A6 / Avant - AWX (131) AVF (131) BNA (136) BLB (140)

Audi A6 / S6 / Avant / quattro - AWX (131) AVF (131) BNA (136) BLB (140)

Skoda Superb - BWW (124) AWX (131) AVF (131) BSS (140)

VW Passat / Variant - AWX (131) AVF (131) BHW (136) BGW (136)

Replaces Genuine VAG Part Numbers:

038145702E - 038145702 E - 038 145 702 E
038145702G - 038145702 G - 038 145 702 G
038145702J - 038145702 J - 038 145 702 J
038145702N - 038145702 N - 038 145 702 N
038145702NX - 038145702 NX - 038 145 702 NX

Replaces Genuine Garrett Part Numbers:

717858-5001S - 717858 5001S - 7178585001S
717858-8009M - 717858 8009M - 7178588009M
717858-9010S - 717858 9010S - 7178589010S
717858-5002S - 717858 5002S - 7178585002S
717858-5010S - 717858 5010S - 7178585010S
716215-5001S - 716215 5001S - 7162155001S
717858-5003S - 717858 5003S - 7178585003S
717858-5004S - 717858 5004S - 7178585004S
717858-5005S - 717858 5005S - 7178585005S
717858-5006S - 717858 5006S - 7178585006S
717858-5007S - 717858 5007S - 7178585007S
717858-5008S - 717858 5008S - 7178585008S
717858-5009S - 717858 5009S - 7178585009S

Replaces Genuine Borgwarner Part Numbers:

53039880195 - 5303-988-0195 - 5303 988 0195
53039700258 - 5303-970-0258 - 5303 970 0258
53039700190 - 5303-970-0190 - 5303 970 0190
