Darkside 1.9 TDI BRR & BRS EGR / ASV Delete Inlet Manifold Kit

Darkside 1.9 TDI BRR & BRS EGR / ASV Delete Inlet Manifold Kit

EGR / ASV Delete Inlet Manifold Kit for VW Transporter T5 1.9 TDI BRR and BRS Engines

This kit completely removes EGR Valve (Exhaust Gas Recirculation) and ASV (Anti Shudder Valve) on the Volkswagen Transporter BRR & BRS 1.9 TDI 8v Diesel Engines.

The BRS is a tricky one to remove the EGR as this is integrated into the inlet manifold. Because of this we offer a range of EGR Delete options for this model.

Our kit replaces the stock intake manifold and ASV with a OE used cleaned intake manifold and Darkside 57mm EGR Race Pipe.

For more information on EGR Valves and Removal see HERE.

Removes problematic EGR Valve & ASV

Alternative Kit Options:

EGR Blanking Kit - This option retains the EGR Valve, Cooler + ASV but blanks off the exhaust gases

We also offer a custom inlet manifold available HERE (This option removes the ASV)

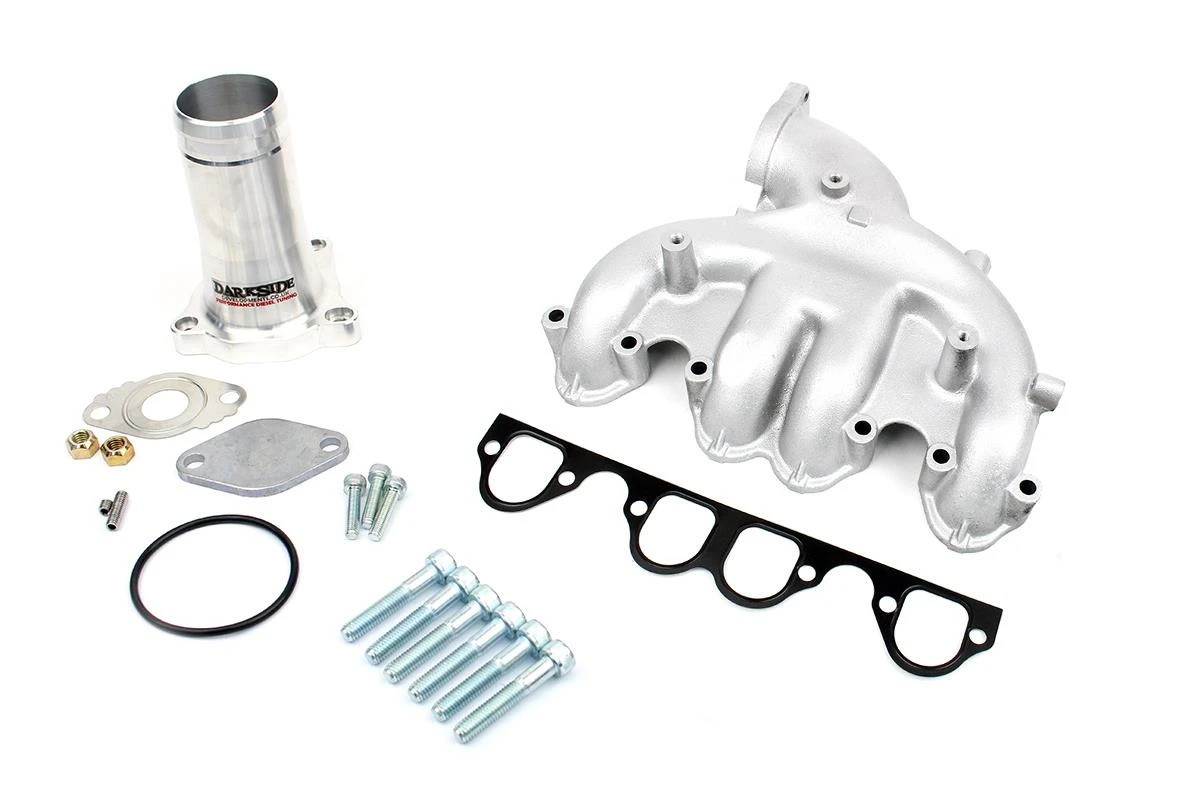

This Kit Consists of the Following:

1x OE Used Cleaned Gearbox Facing Intake Manifold
1x 57mm EGR Race Pipe
1x Exhaust Manifold EGR Blanking Plate and Gasket
1x Intake Manifold Gasket
Installation Hardware

Darkside 2.5" Stainless De-Cat Downpipe for VW Transporter T5 1.9 TDi BRR, BRS & AXB Engines

https://darksidedevelopments.com/products/darkside-2-5-stainless-de-cat-downpipe-for-vw-transporter-t5-1-9-tdi-brr-brs-axb-engines.html

This Kit will fit Vehicles with the following Engine Codes:

VW Transporter - BRR (84) BRS (102)

Please Note: Once the valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emissions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

DARKSIDE DEVELOPMENTS ACCEPTS NO RESPONSIBILITY FOR THE USE OF THIS PART ON THE PUBLIC HIGHWAY WHERE REMOVAL OF EMISSIONS CONTROLS IS PROHIBITED. IT IS THE CUSTOMERS RESPONSIBILITY TO ENSURE THEY COMPLY WITH RULES AND LAWS RELATING TO THEIR HOME COUNTRY
